Primitives in this family

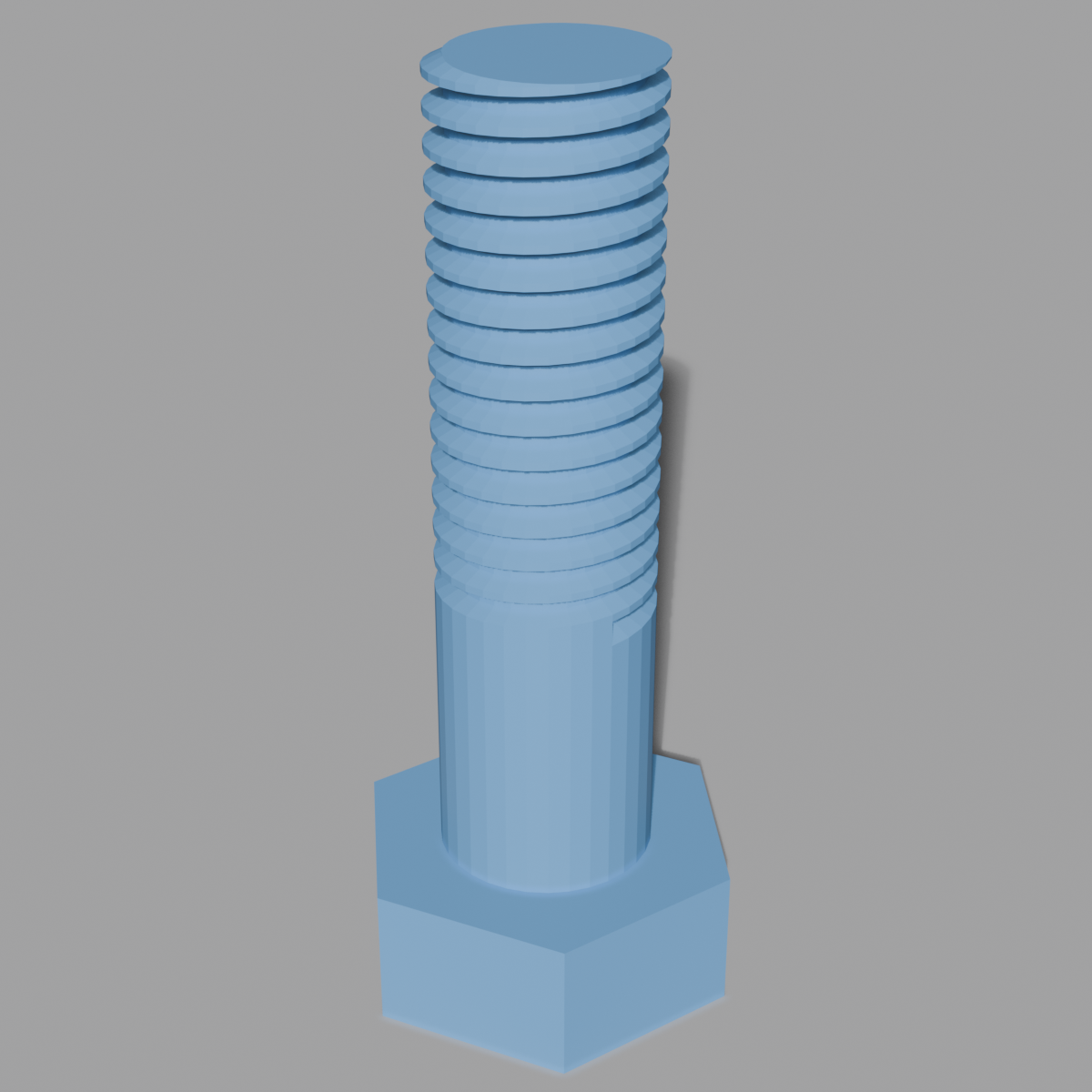

Hex Bolt
A complete bolt — hex head, optional shank, external thread, optional tip. Built subtractively: a blank stack (shank → thread blank at the full major diameter →

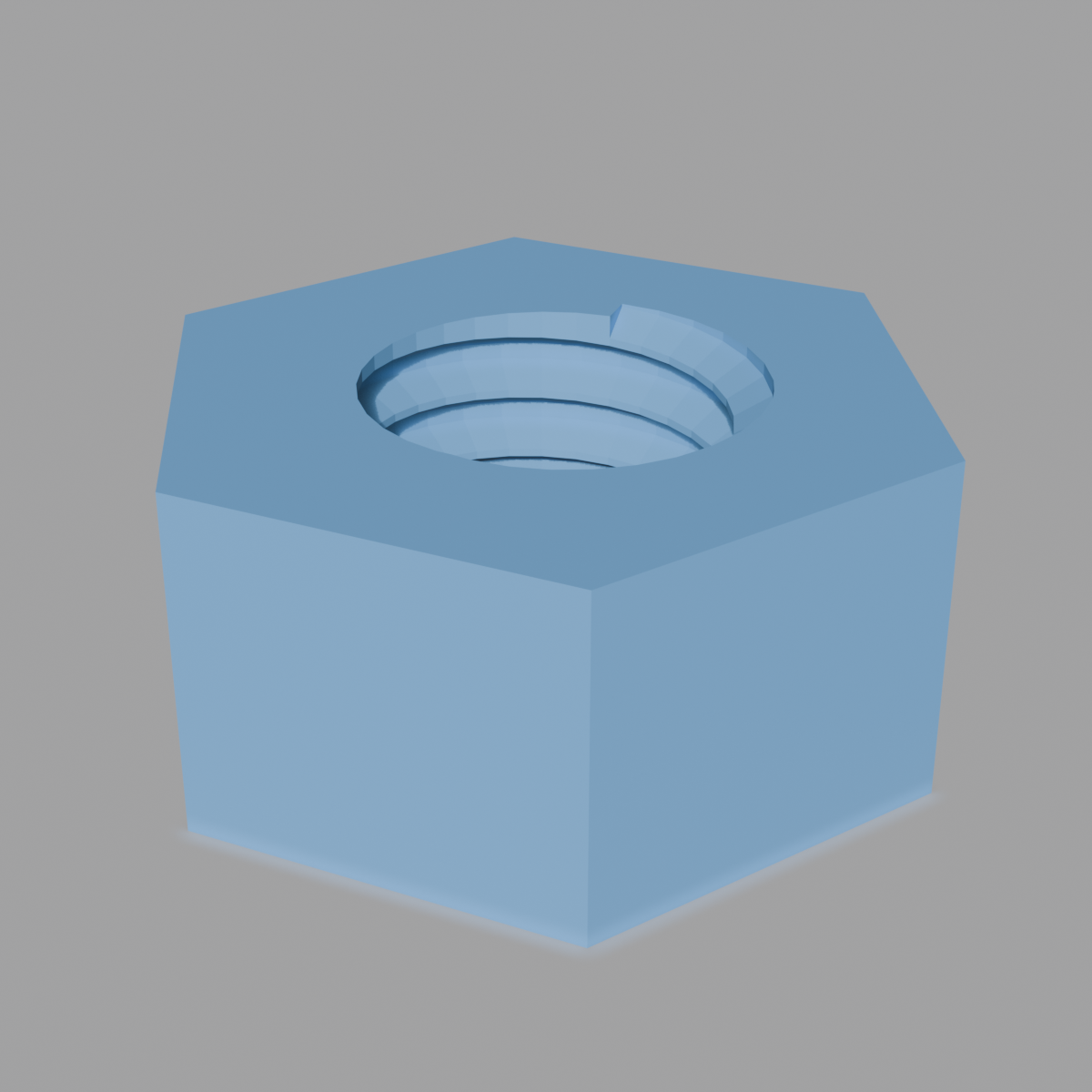

Hex Nut
A hex thru-nut — internal thread cut all the way through a hex prism. Built subtractively: a helical groove cutter differenced out of the prism first, then a pl

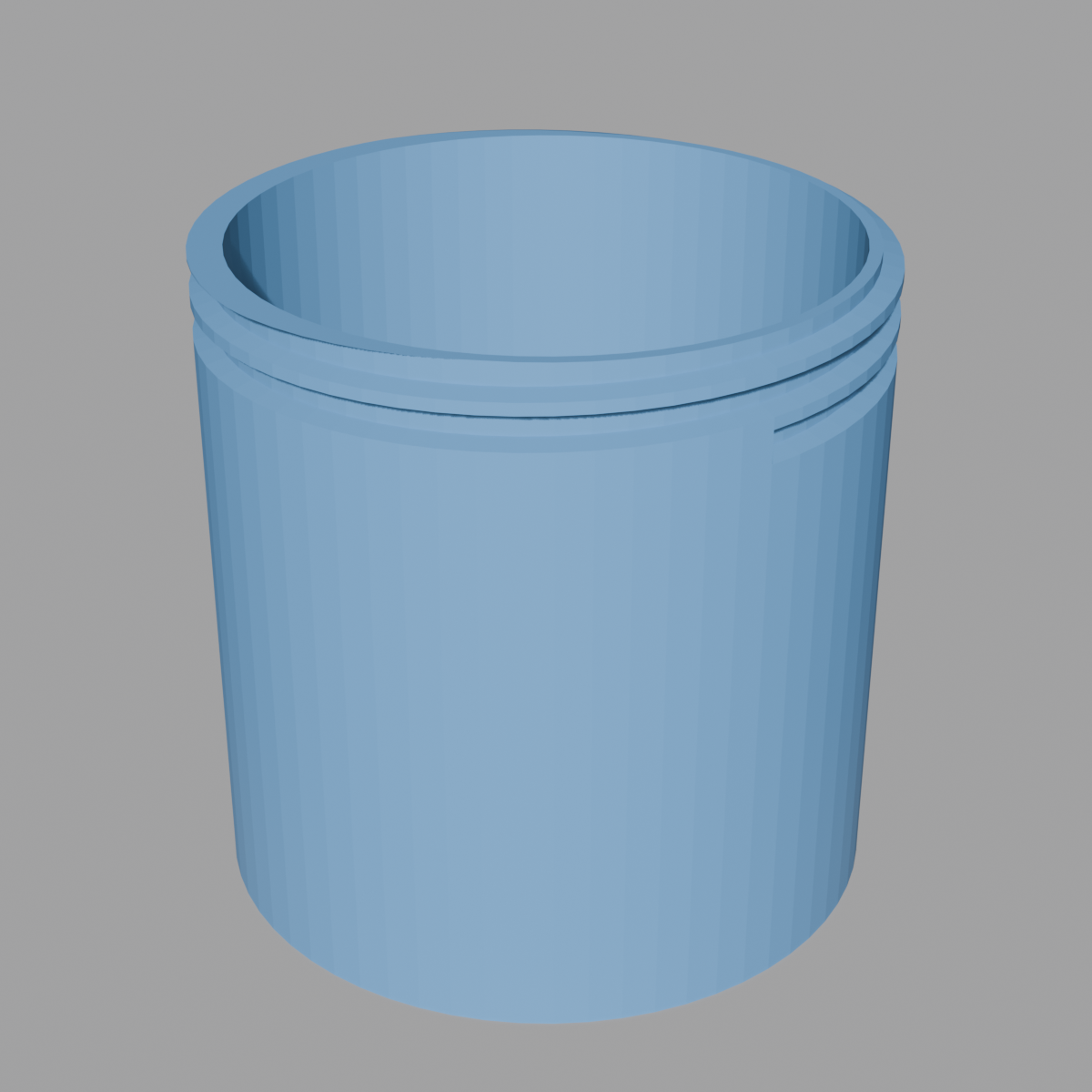

Threaded Container
A screw-top jar body: solid floor, straight outer wall, open mouth at the top, with an external thread cut directly into the existing outer wall near the top —

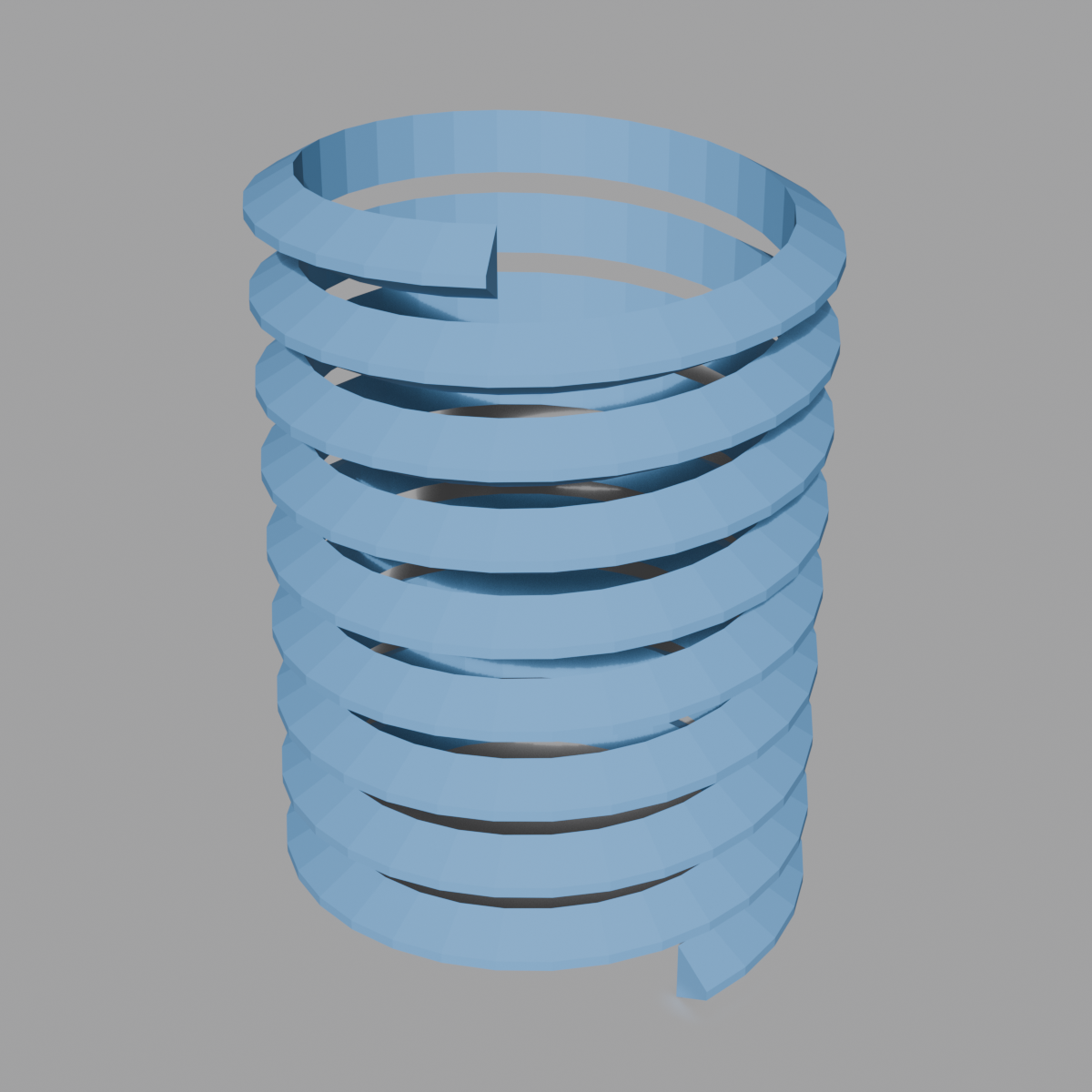

Threaded Fastener
Generates a single thread-helix solid, meant to be combined with other geometry via a manual boolean in the same session — this operator never does the union/di

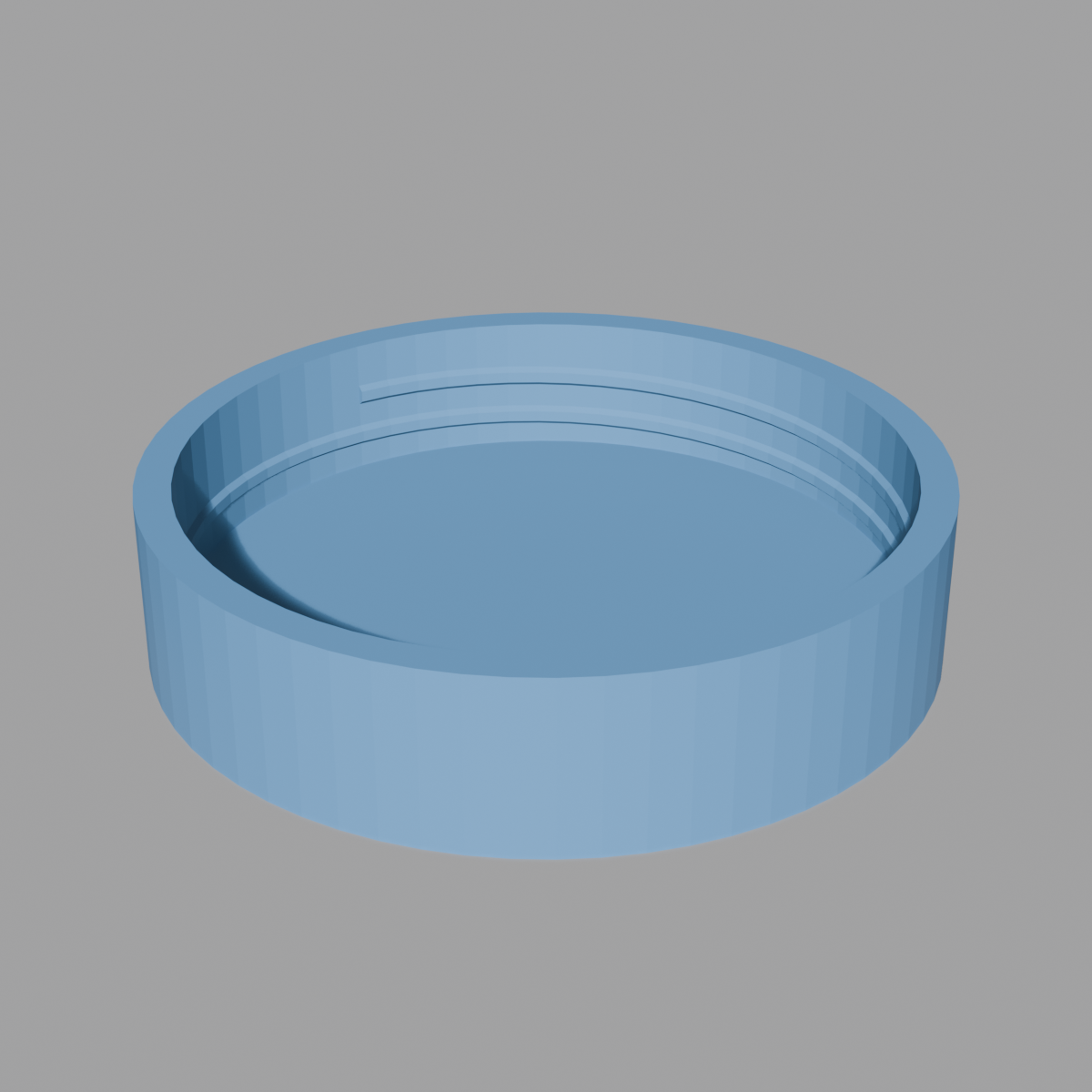

Threaded Lid
An inverted cup that screws onto a threaded_container neck: solid cap at the top, open skirt below, with an internal thread ADDED (unioned) onto the skirt's alr
Units and Core Parameters
Threads are described by four numbers that all have to match for a bolt and nut to fit together: thread diameter (the nominal size, e.g. M8), pitch (distance between threads), flank angle (thread shape, usually 60°), and truncation (how flat the crest and root are).
Target Matching
Pick a bolt or nut as a Match Target and its thread dimensions are copied over automatically, so the two are guaranteed to fit together.
